In Part I, we left off with the tray structure completed if not yet finished. In Part II – also the last part, no matter how long – we’ll build the base and apply the finish.
First, why do we even need a base? Well for the spinning part of the build, I bought a metal turntable. In addition to not being terribly attractive, it’s relatively low profile and I’d prefer to have the tray a bit elevated. Secondly, it’s metal and has the potential to scratch the surface it sits on. Third, I’d prefer a wider support base so the tray is more stable even under asymmetric loading. And fourth, the frictional connection to the countertop might be less than for wood and/or more difficult to add a no-slip pad to the bottom. So it was off to the design software to write up a plan.

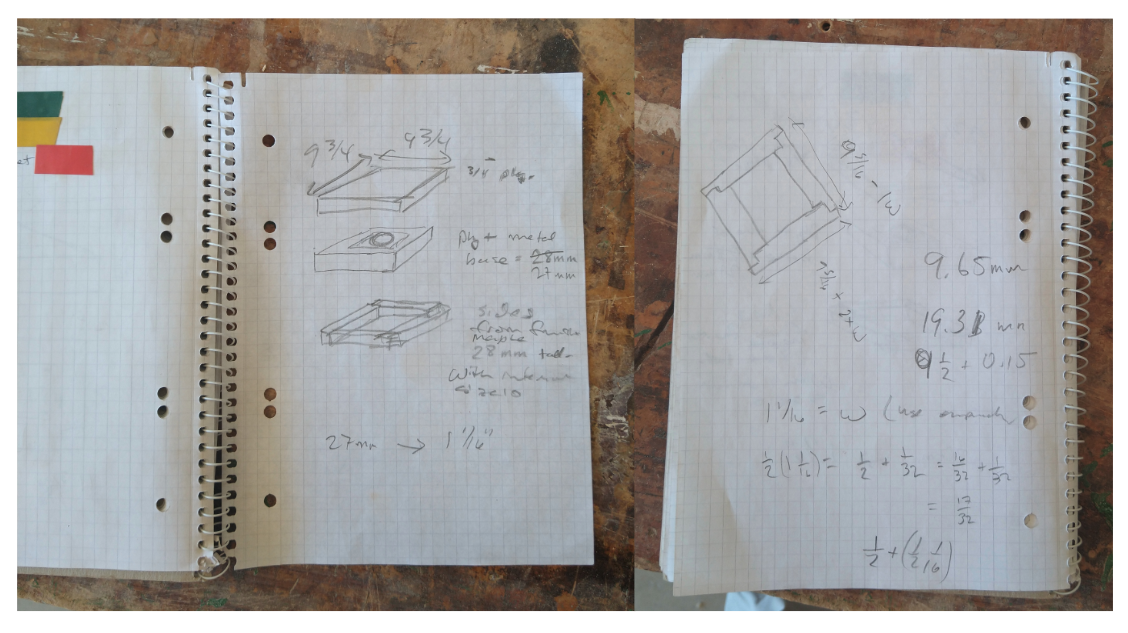

The basic design was to build a wood base to mount the turntable on and, since that would very likely be 3/4 inch plywood, some ‘walls’ to cover the plywood edges. The size of the base was set so that the full range of circular motion of the turntable would stay within the foot print of the plywood base.

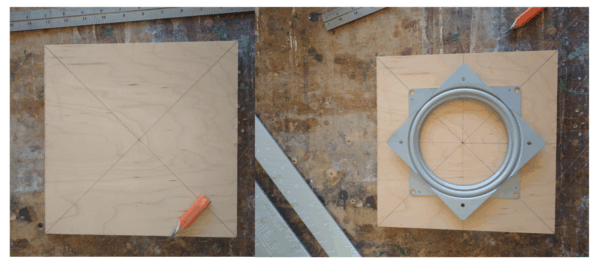

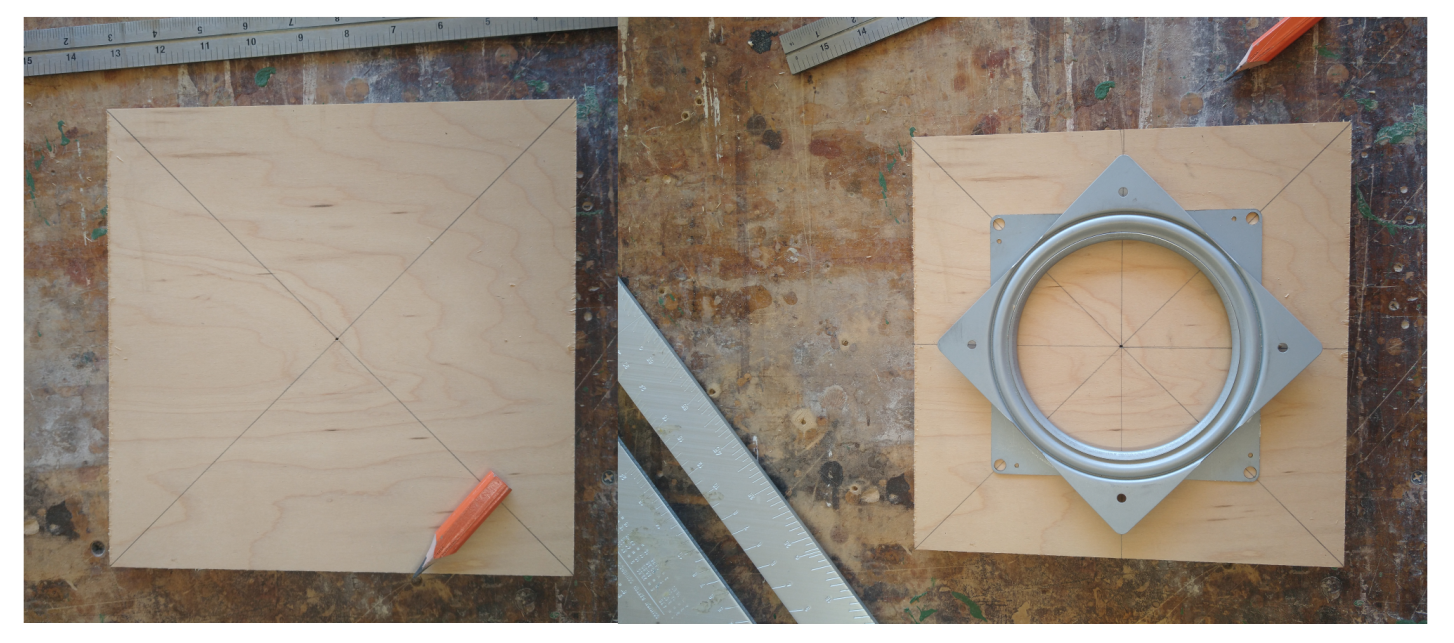

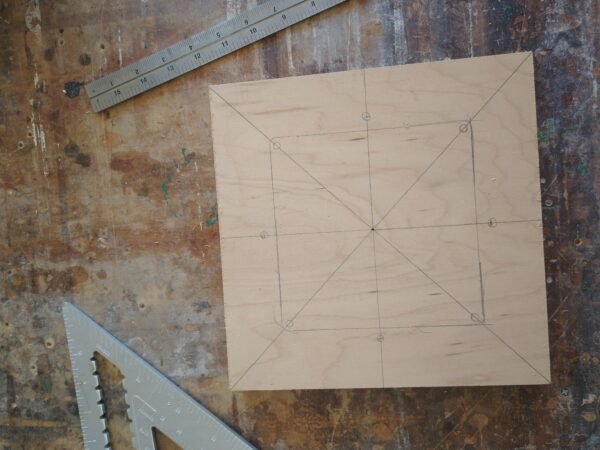

With those dimensions set, I cut out a square piece of plywood on the table saw from some scrap pieces left over from my kitchen cabinet construction. Now we want the turntable to be ‘perfectly’ centered on the wooden base, so the next step is figuring out the placement on the turntable. To locate the center of my new wooden base, I simply drew diagonal lines connecting the corners – for a square (or any rectangle really) the intersections of those lines locates the exact center. For reasons that will become apparent, I also laid out lines that bisect each edge passing through the newly located center point. Great! But that doesn’t tell us where the center of the metal turntable is which is what we need to align with wood base. However, since both the turntable and the wooden base are squares and the turntable has attachment points equidistant from its center on each corner, if I center those holes on each diagonal simultaneously, the centers of both the base and the turntable will align with each other. Of course, in addition to mounting the turntable to the plywood base, it will eventually need to be attached to tray itself. That’s where the lines bisecting the base edges come into play. If I align the turntable to center up on the plywood base and then rotate the part of the turntable that will mount to the base by 45 degrees, where the mounting holes on that side of the turntable line up with the vertical and horizontal lines define the location on the plywood base that I can drill through to have access to those mounting holes once everything is ready for assembly. It will become clear later at final assembly! So now I have completed the layout for connections on the base. [It was at this point I got fed up trying to make word press put images where I wanted them so you just get thoughtless image inserts from here on out – and pretty low resolution when embedded, so click on the image for higher res if you want.]

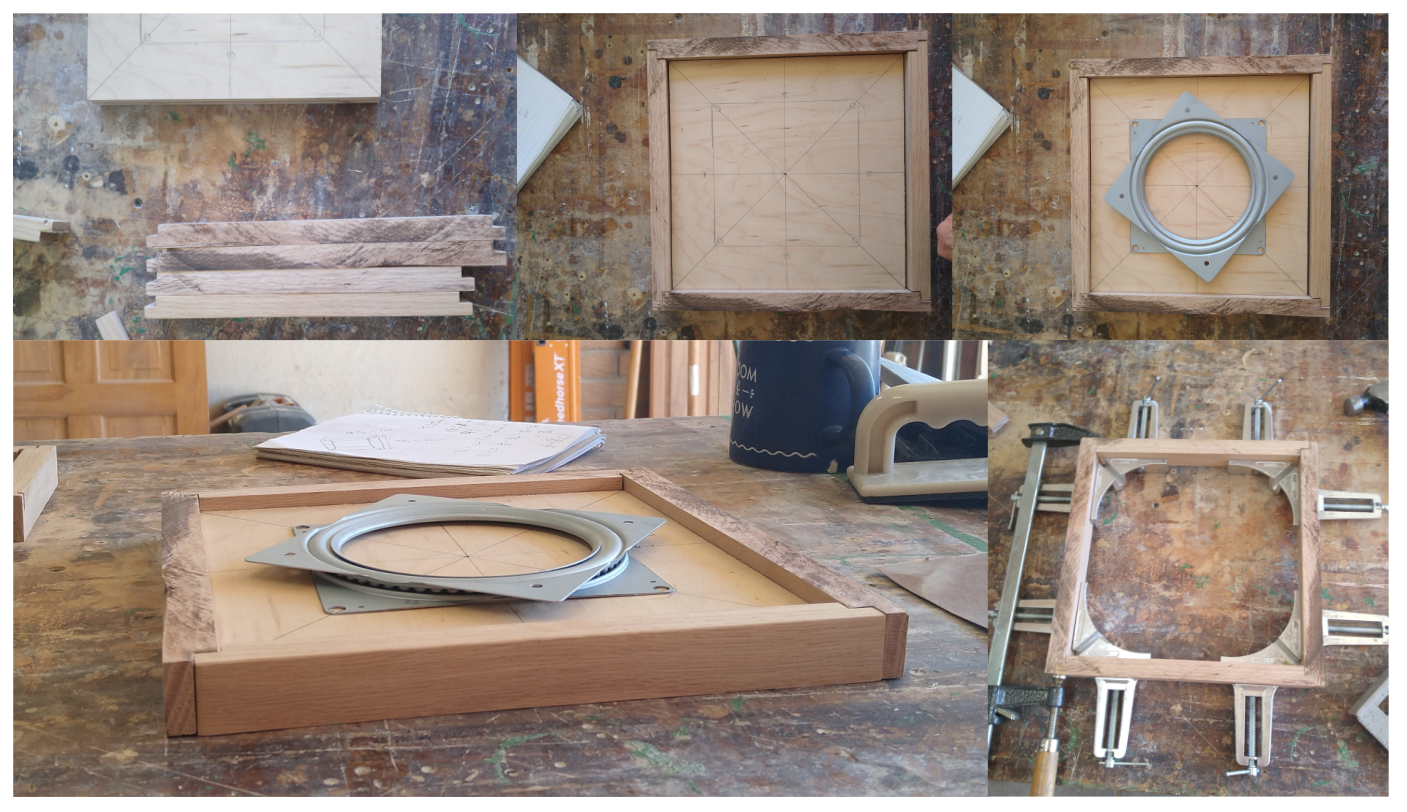

The next step is to build a ‘box’ for the turntable assembly to sit in. Was going to simply use some maple door faces I had built for the kitchen cabinets. Due to a clerical error, they were not the correct size to fit the double wide cabinet bases in an aesthetically pleasing fashion, so they were in the scrap pile. But after taking them out and preparing to cut them up, I realized that they fit almost perfectly on my crappy garage cabinets (test builds for the kitchen cabinets), so back into the scrap pile until I get around to attaching them and go dig out some other spare red oak.
Since I’m using 1/2 lap joints for the base, I need one set of sides to be equal to the width of the base+2 side widths and the other to be the width of the base+1 side width (Figure 3, bottom right). That’s easy to set up on the table saw without measuring anything once you’ve cut long pieces cut out at the right height for the base – see Figure 3, bottom center. One could do the 1/2 lap joint cuts with the router, but I didn’t want to set up the table (down side of not having a dedicated shop…) and the cuts were small enough and few enough that they could be done on the table saw without even having to swap in a dado blade stack. I set the blade height to be 1/2 of the width of the side pieces for the 1/2 lap joint. I only did a rough measurement for the initial setup and then used the cutoff scrap pieces to finalize the blade depth and depth into the side for the cut.
All the parts are basically finished now – modulo some sanding which I won’t bore you with.

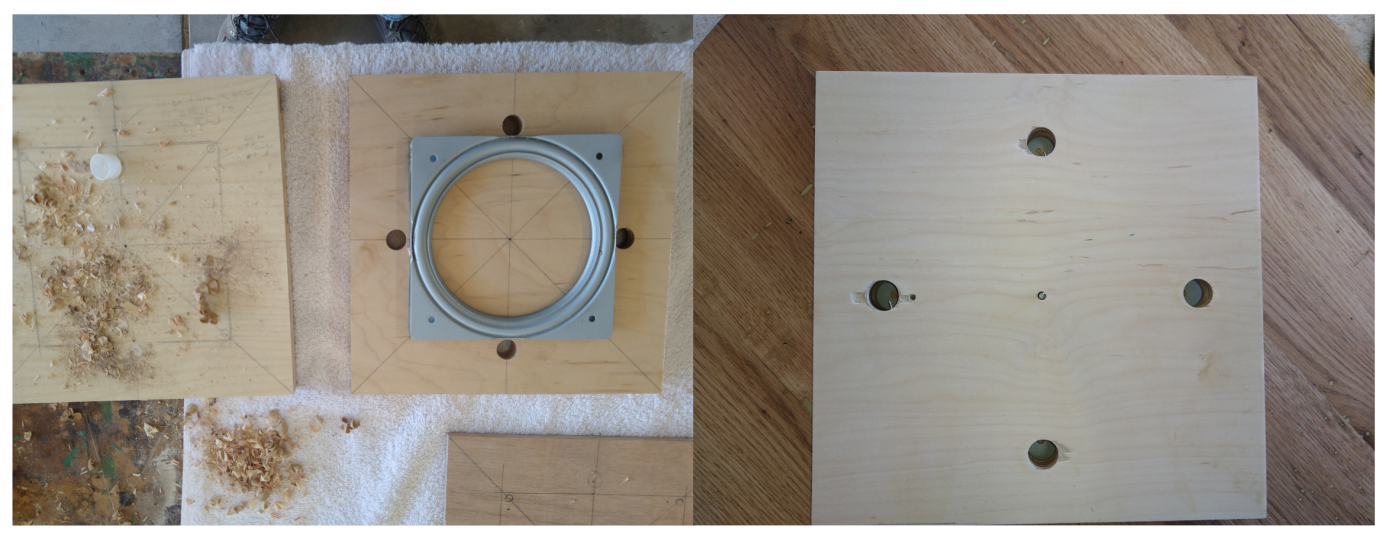

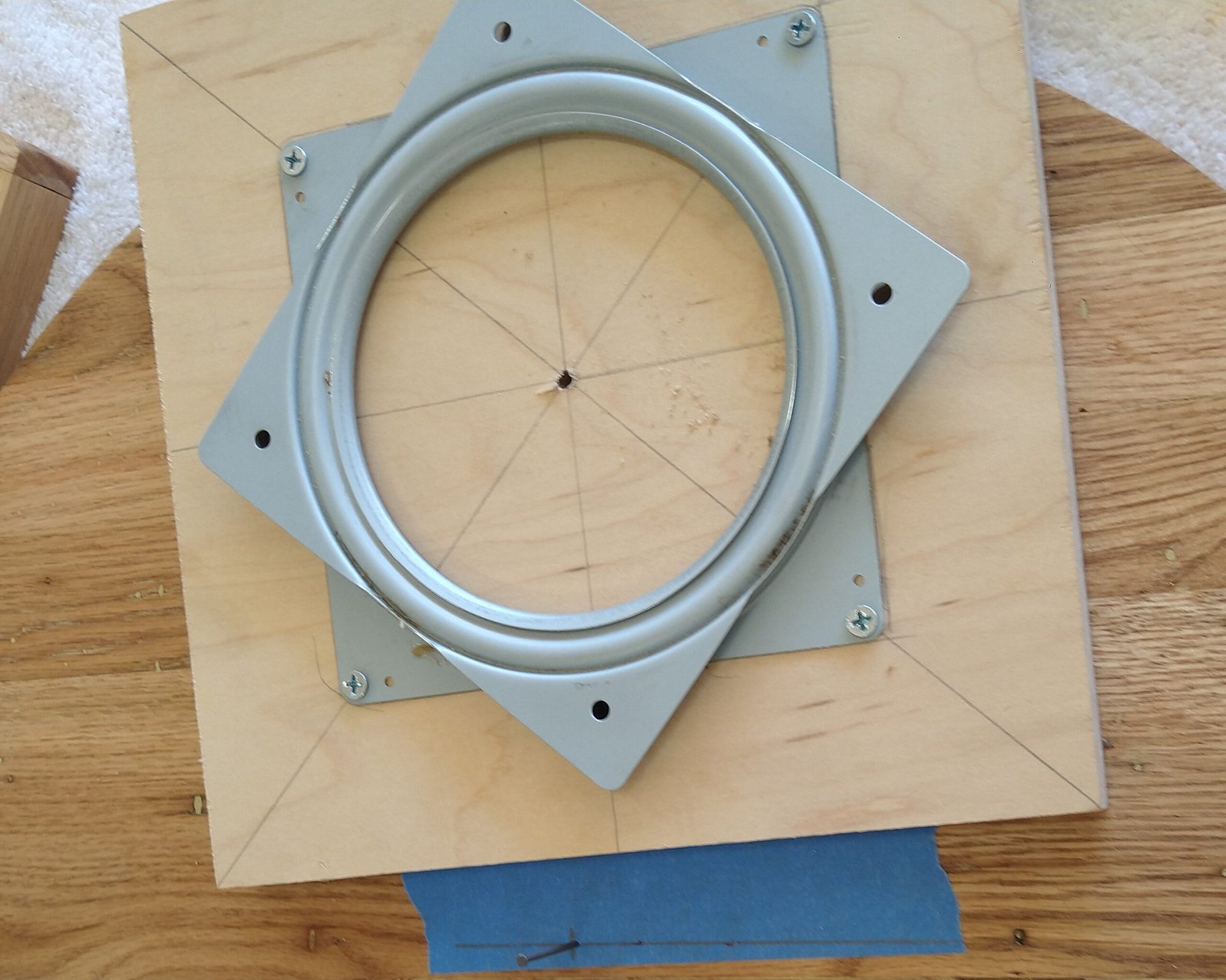

Now we need to attach everything on the base and prepare for attaching to the tray. The layout is shown in Figure 4, top right and bottom left. Figure 5 shows the actual attachment of the turntable to the base. The metal piece of the turntable not attached will be what attached to the wooden tray eventually. Of course, the problem is that, once you have the turntable attached to the base, you can’t access the holes to attach it tray and vice-versa if you do it in the opposite order. The solution to this dilemma lies in the mysterious off diagonal lines and marks we make earlier and is illustrated in Figure 6. At the locations we found earlier, drill large diameter holes through the plywood base, large enough to accommodate a screwdriver (Left). On the right of the figure is the view from the back (frankly, my preferred view in general…) showing how the base can be rotated such that the small holes on the top of the turntable that are used to attach to the tray can now be accessed via the large hole ‘pass-through’ for assembly.

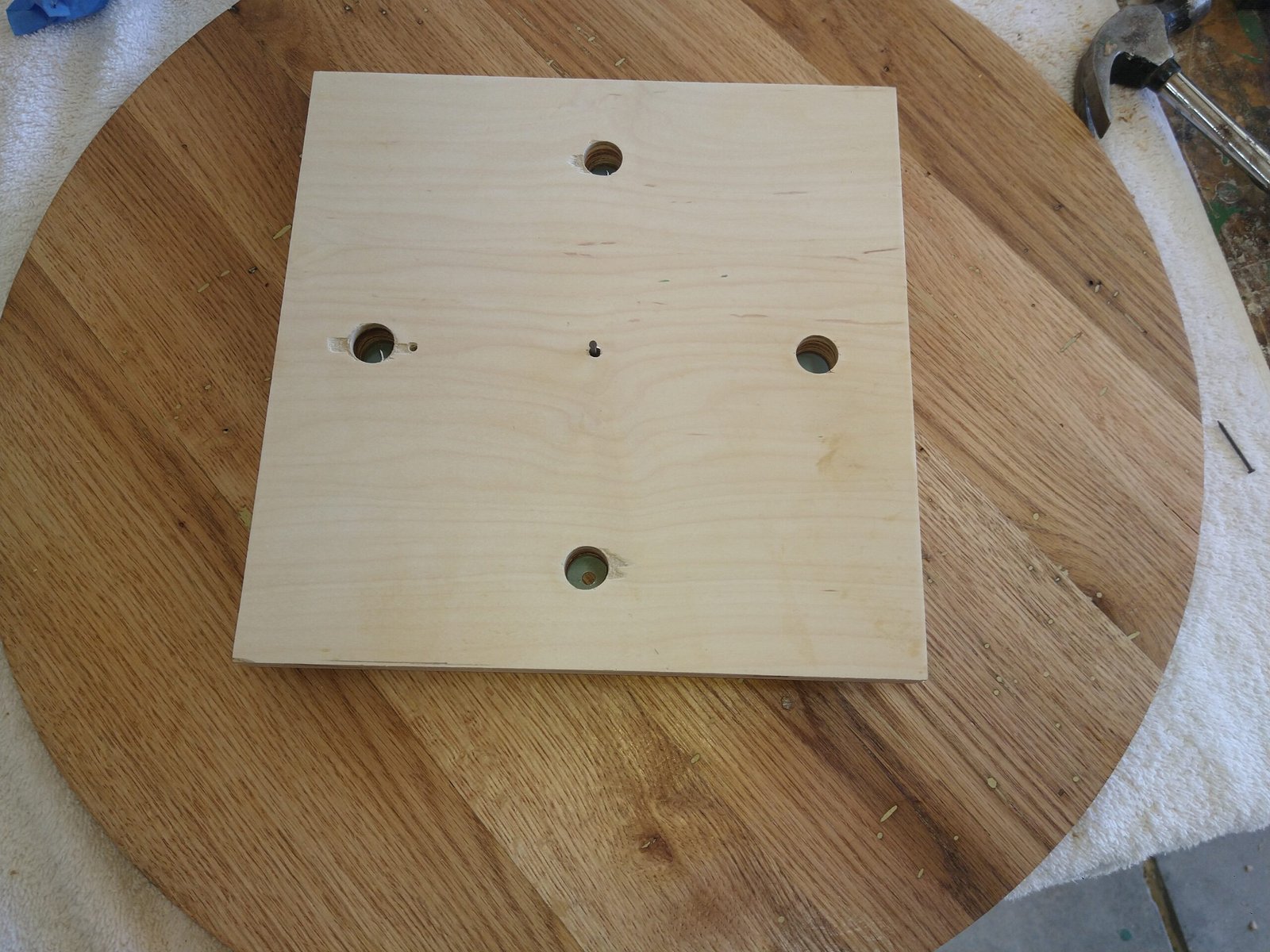

Now what remains is to center the base on the actual tray. I tried a few methods finding intersecting diameters but that was very dependent on accurate measurements and didn’t yield a good, unique center. Fortunately, I still had the center mark from routing out the tray on the other side and I could locate that very accurately with respect to edges of the individual planks that went into building the tray (see Part 1). So I could draw a very accurate vertical line on the back upon which the center had to live. Then one can mark the point on that line equidistant from edges along that line and it gives you the center point. I put a nail into the bottom of the tray and drilled out a very small hole on the center of the plywood base mount That allows us to define precise mounting points on the bottom of the tray (Figure 7). When attaching, make sure you use short enough screws not to come out the other side, the other side being, in this case, the top of the tray that everyone sees!

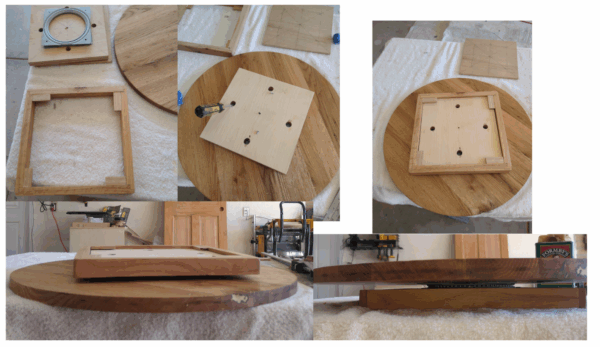

Prior to final assembly, I wanted some offsets on the sides of the finished/visible base that the plywood base assembly could rest on to lift the spin-y bit attached to the bottom of the tray by 1/8 of an inch or so to assure that the tray would not contact the finished/decorative base when spinning. This was the ‘design flaw’ mentioned earlier; I made everything so that the sides were the same height as the height of plywood base plus the metal turntable. That would allow the bottom of the tray to scrape the top of the sides as the tray spins. So it requires a bit of ‘fix’ at this stage. Now it’s time to make the final attachments and assembly – Figure 8.

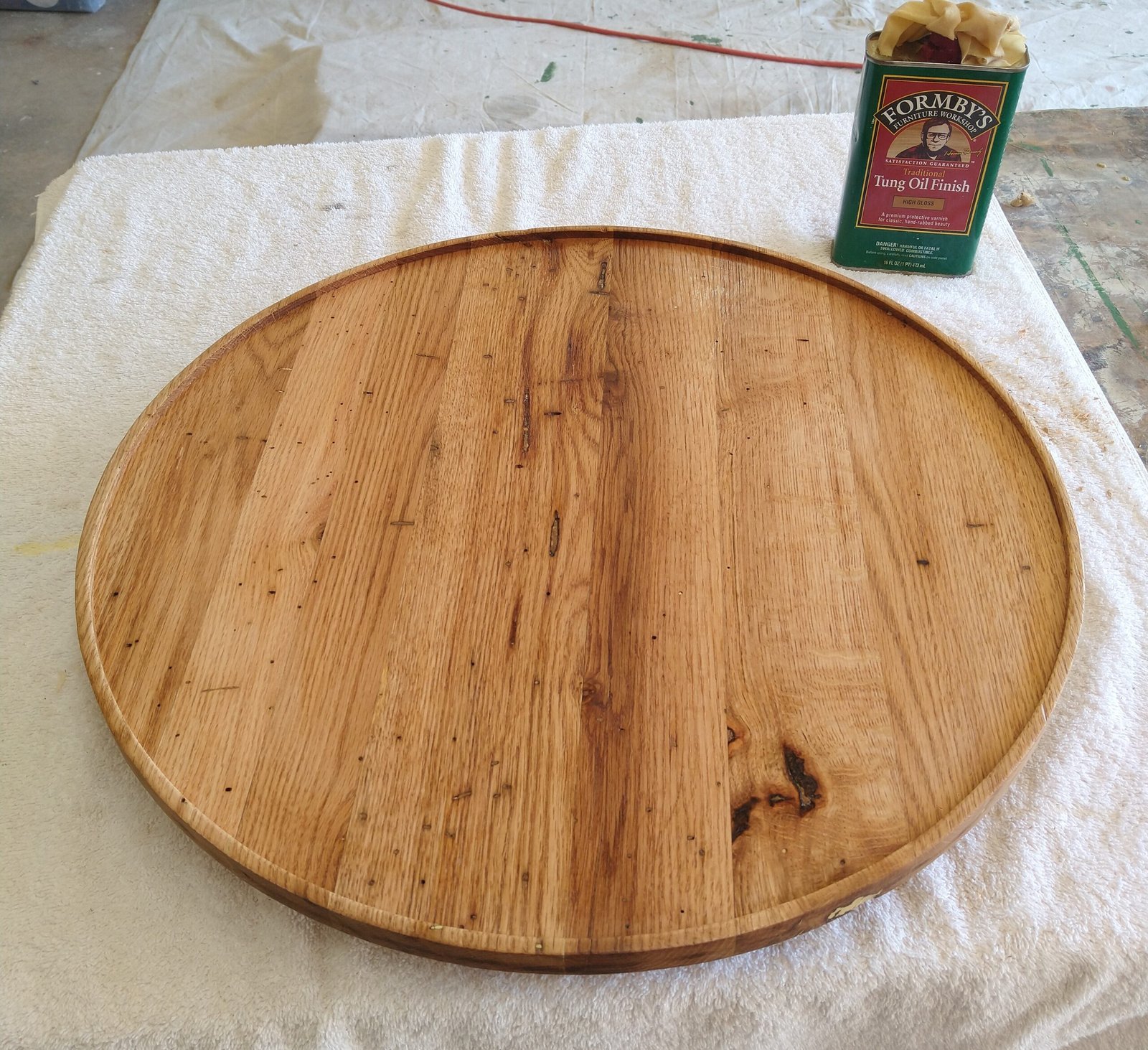

The real last step is to apply a finish. Though this is not something that will be in direct contact with food, I wanted to avoid stains and poly, so at an earlier step, I tested out a Tung oil finish on the sides of the base and the bottom of the tray. I like the look, so went with that for the tray proper – Figure 9.

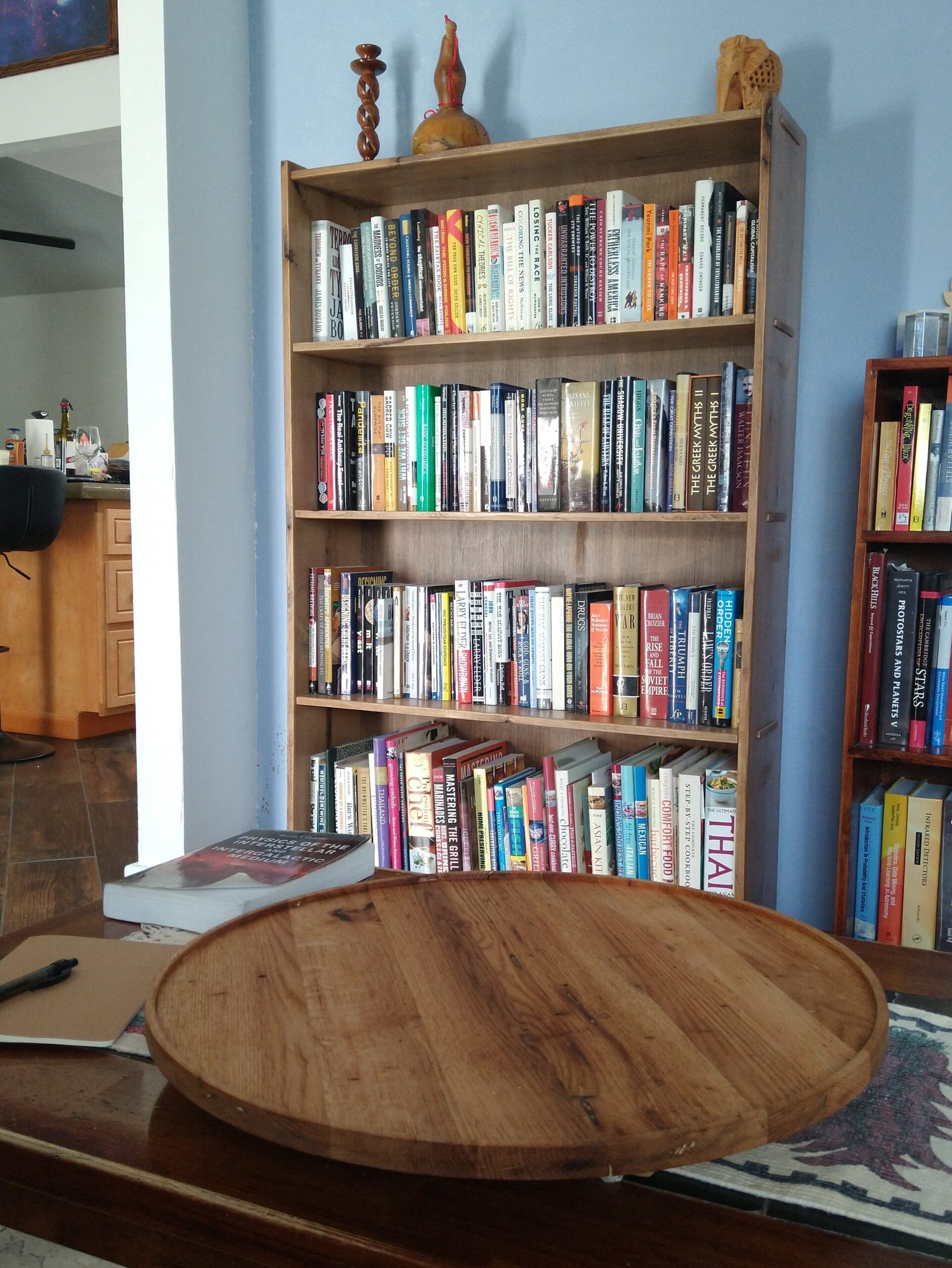

Here’s the final product in it’s natural environment – well not really, just out of the garage while the oil sets/between applications so it doesn’t get covered with sawdust and other crap. As a bonus, the hickory book shelf built from the other wood recovered at the beginning of this saga is visible in the background.
General turned out nice; now whether to go buy nice wood and replicate. Christmas presents! Wait, it’s already early December, that ain’t happening. Exactly how many Lazy Putrid’s can one fit in the home? I’ve been told that even one is sometimes one too many, so we’ll see if another gets built.
