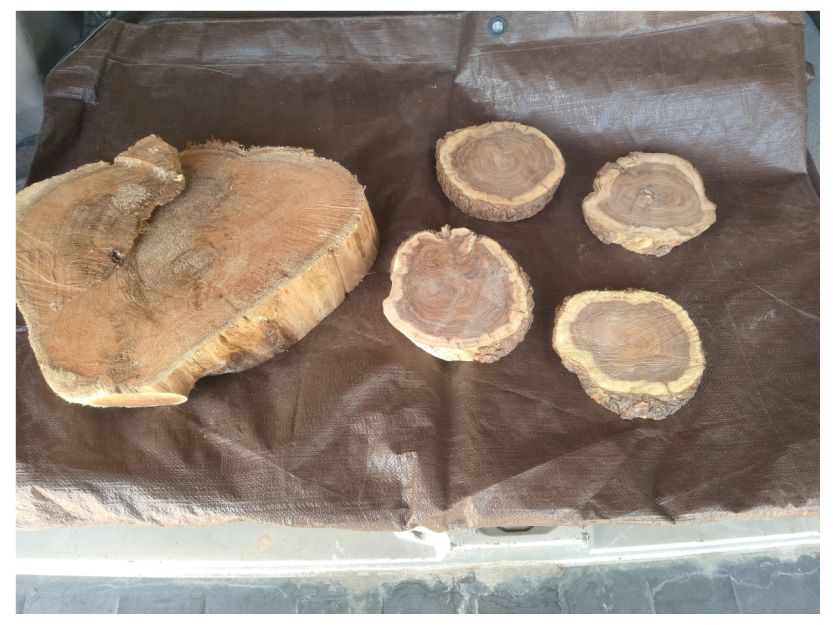

Let us step back in time 4-5 years ago. You may recall that I recounted the tale of large mesquite tree at Chateau Putrid, destined to rot in place or fall on me, the garage, my car, or the neighbor, maybe not in the next wind storm, but eventually. So, despite it being 40 foot tall or so, I thought it would be a good idea to reduce it to a stump. So I did. And lo it did provided much smoking wood, producing a bounty of ‘bacon’, sausage, ribs, and pulled pork over the years. It also provided the boards for a spice rack, a puzzle frame, and book shelves; a veritable Giving Tree. Alas, with the exception of the earth and sky, nothing lasts forever, and my Giving Tree is no exception. All I have left is a collection of ‘cookies’ rough cut with a chain saw from stumps. “Cookies” is just a highly technical term for flat rounds of wood cut perpendicular to the grain from the trunk or limbs of a tree.
Of course, the key word is ‘flat’. Even if I had real chainsaw skills, which I don’t, getting parallel sides on a cookie with a chainsaw is not really doable, and without the skills, laughably impossible. But to do anything with these pieces, one really needs them flat and parallel. And looking at the beautiful grain and figure, I really wanted to get something nice out of them, even if I have no idea what the final product will be. Therein lies the rub(bing of the wood) – how do you get flat parallel sides? Wood workers have jointers and planners to do that very job, but very few of them are large enough to accommodate large, oddly shaped pieces. To say nothing of the fact that since you would be running the end grain of the material across the cutting knives, you are more likely than not to, at best, create wavy, sniped surface and at worst (and highly likely) create very high velocity high caliber wood bullets as the piece comes flying back out at your face and/or groin depending on your stance relative to the feeder.
So how does one flatten these larger, oddly shaped end pieces? Well, one can buy a router flattening jig. The basic idea is to affix rails to a large flat bed and run perpendicular rails that can support a sliding router – like nyah and nyah. One can then place larger end grain materials on the bed, place a router on the perpendicular supports and drop the router bit to just make contact with the surface you want to flatten. Said perpendicular supports can slide along the rails as well as across the bed; by moving the router along both axes, one can make a pass across the surface, removing material parallel to the bed and thus, with multiple passes of increasing depth, flattening the surface. The only requirement is that both side rails and the rails supporting the sliding router remain parallel to the bed of the jig. Now, as you can see, said jigs are not necessarily cheap. But hell, conceptually they should be easy to build. And I have a bunch good plywood and scrap hardwood left over from the cabinet build, so with minimal cost, I should be able to build my own jig. Right? (incidentally, my kitchen remodel was finished a bit ago – I may write up the transformation/final product if we run short of material upon which to snark).

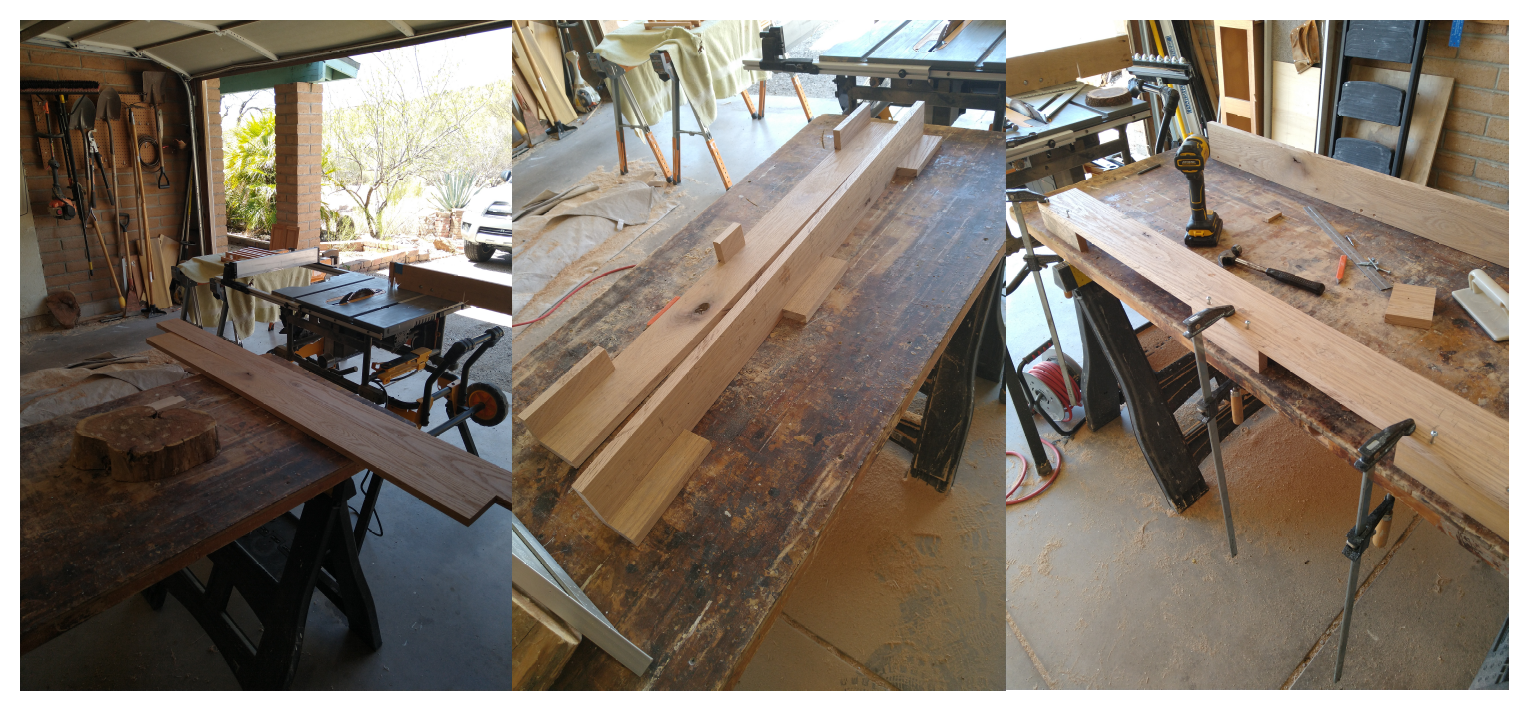

So let’s build a router flattening jig. The first step is to create the side rails that the router sled will run on. We can make them arbitrarily long; in my case I set the length to 4 foot based on the left over red oak stock I had. The real important thing here is that the height of the rails be exactly the same since we need the router to a constant height above the work surface as it moves across it. The height of the rails will determine the range of thickness that you can flatten – too low and you won’t be able to flatten thick material, too high, and the plunge of the router bit will not be able to reach the work surface resting on the bed. Since I had some thick material here, I set the height of the side rails to 4 inches. With that determined, it’s straightforward to rip two pieces of the red oak on the table saw to 4 inches. Note that being exactly 4 inches is not important, that will just set the range of widths of material you can process, just that the two rails are exactly the same height. We also want feet to be able to attach the rails to base, so I cut those out of the same stock. The feet can be easily attached to the side rails with wood glue and wood screws. I did countersink the screw heads into the inside side rails, though that’s not strictly necessary.
With the side rails built, they need a base. As mentioned above, I had some decent quality plywood left over from my cabinet build, so I decided to use that for the base. One is free to make the base as wide (perpendicular to the side rails) as one wants to accommodate whatever width of material you want with one caveat. Since the router slide is going to span that width, you don’t want the span so large the heavy router will sag it as you move across the jig – it is critical with this jig that the rail be exactly the same distance from the base upon which the working material will set and that the router rails and hence bit, once set, remains a fixed height above the work surface; if the router sags as it moves back and forth you will imprint that sag onto your working surface – since the whole point is FLAT, that would be less than ideal. With some experimentation with my router rail material and the weight of my router, I settled on 21 inches. Accounting for the width of the side rails and the attached feet, I cut a piece of plywood out of my excess

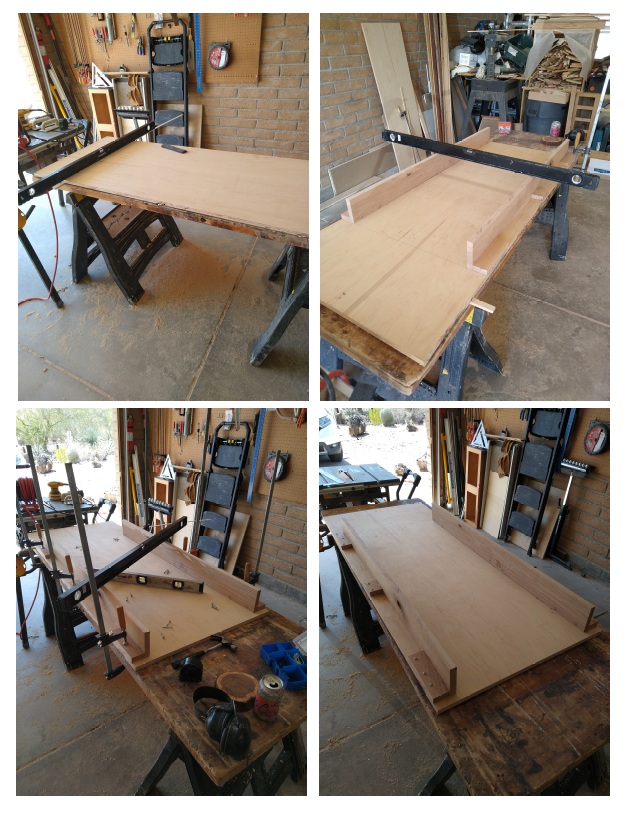

With the side rails assembled and the base cut out, time to attach the rails to the base. In principle, if we’ve been careful and have flat and true stock for the rails, we should be able to just attach the rails. Being OCD, checked it. I first shimmed up the base so that it was level in all directions. That way, I can just check the rail for level in both directions (long and across the base) for level and be assured that the rails and base are square to each other. With the base leveled out, I can attach the side rails and and check them for level in all directions. Once everything is verified, I can attach the side rails to the base. I did NOT use glue here, but just some pre-drilled screws so that the rails can be removed and replaced (see the end of the post…. if you can find it down there somewhere in the distance.).

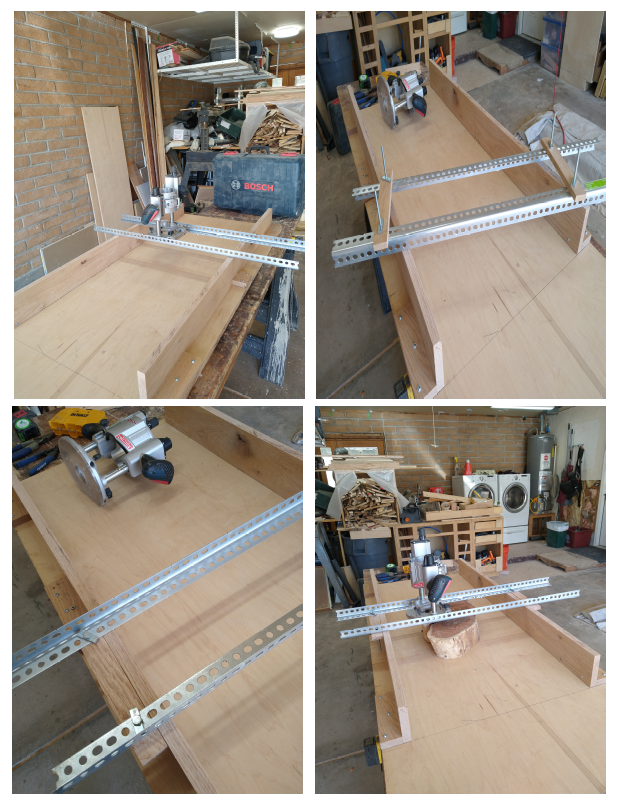

So now with the base and rail assembly completed, it remains to make the router sled that will allow to the router to slide on two axes across the surface of the work material. In principle, one could make the sled rails out of wood, but I didn’t have any left over good straight stock, so I elected to use some metal L brackets with pre-drilled holes. Since I will need guides on the router sled to guide it on the long direction of the base, the holes allow me to easily bolt the guides onto the rails. But first, I need to figure out the spacing of the rails to fit my particular router base. So I just laid my rails across the base and adjusted the width to match my router base. With that set, I measured hole spacing and marked two pieces of red oak to function as the edge guides.

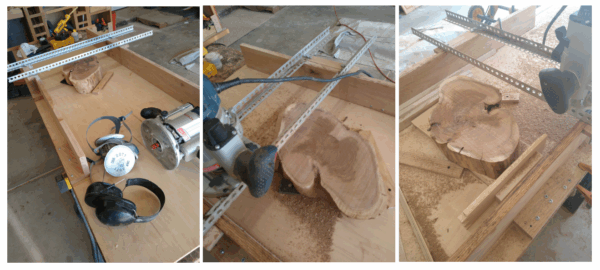

Well, now there’s not much to do except have at it. I put the target cookie on the base and ‘locked’ it in with some scrap plywood attached to the base. You also need to shim the work piece so it isn’t rocking – it doesn’t need to be flat (that’s the whole purpose of this operation after all), but it need to be fixed in the horizontal plane. With the work piece set, pass the router over the material (not running) and set the bit depth to the highest point plus a sixteenth of an inch or so. Now set the router at one end of the piece on the long axis of the base, turn it on and run it across the work piece along the metal rail. Slide the router sled about 1/2 a bit width down the base, and make another pass along the rails. Continue in this fashion until you’ve reached the other end of the work piece. Depending how close you were to flat to start with, you probably have untouched sections of the work piece surface; slide the router sled back to the starting end of the work piece, drop the bit, and start again. Rinse, lather, repeat until the entire surface of the work piece has been contacted by the router bit. Now you have one side of the work piece flat relative to the side rails and by extension the plywood base. Yes, one side. You didn’t think we were done yet, did you? Now we need to flip the work piece so the just flattened side is on the base – if we’ve built everything correctly, it should lie perfectly flat on the base. Now we just repeat the passes on this unfinished side. When done, we have a flattened piece of wood with the sides parallel to each other.
Turned out to be a relatively simple jig to build as long as one takes care each step of the way – sort of the way it is with everything I suppose. In fact, I think it took longer to write this up than build the jig!
Now if you remember way way way WAY back at the beginning, I set the side rail height to 4 inches. That’s perfect for the thick pieces. However, that means that, given the depth of my plunge router – not a euphemism – I can’t use this jig to do the small cookies. I can either build a platform to set them on or just build a second set of (shorter) rails. Since I was careful to make the side rails removable, I’ll probably do the later. I’ll probably also buy some peg board – also not a euphemism – to put in base so that it’s easier to lock the work piece in place with some dowels.
